Seismic

Seismic technology plays a central role in modern oil and gas exploration by helping geoscientists understand what lies beneath the earth’s surface before drilling begins. It is one of the most important tools used to reduce uncertainty, improve reservoir evaluation, and support safer and more cost-effective decisions throughout the exploration and production lifecycle.

What Is Seismic Exploration?

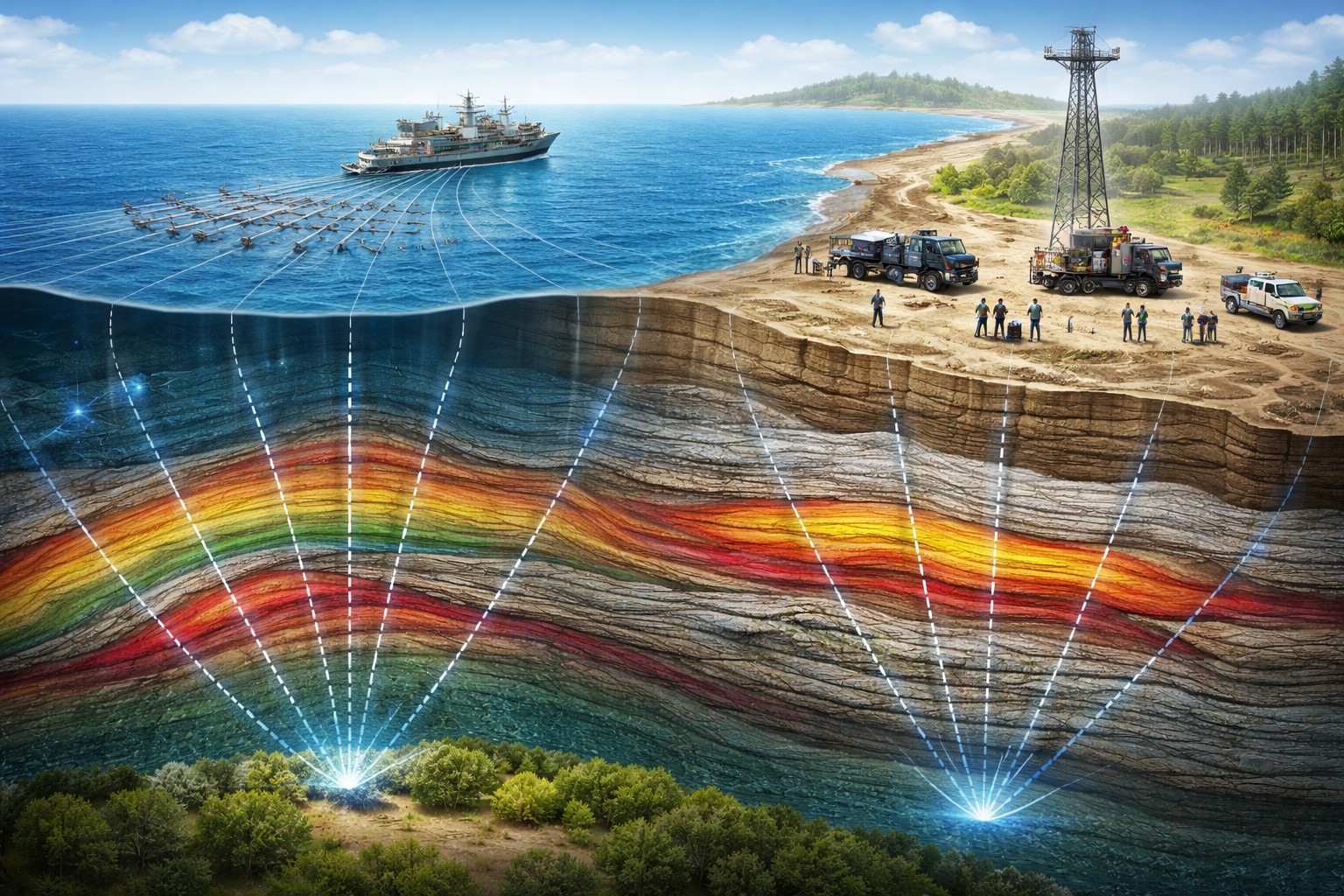

Seismic exploration is a geophysical method that uses sound waves to map subsurface rock formations. Controlled energy sources generate waves that travel through the earth and reflect back when they encounter changes in rock layers. These reflected signals are captured by sensors and processed into images that reveal geological structures hidden below ground or beneath the seabed.

This process allows exploration teams to identify formations that may contain hydrocarbons, including structural traps, faults, folds, and stratigraphic features that can hold oil and gas accumulations.

Exploration and Prospecting

One of the earliest and most critical applications of seismic is in exploration and prospecting. Seismic surveys help identify geological traps where hydrocarbons may accumulate, including fault traps, anticlines, stratigraphic pinch-outs, and salt dome structures. These features can create the conditions necessary for oil and gas to be trapped beneath impermeable rock layers.

Advanced seismic imaging improves the ability to evaluate prospects before drilling, reducing uncertainty and helping exploration teams prioritize targets with stronger commercial potential.

Supporting Hydrocarbon Discovery

One of the primary roles of seismic in exploration is locating potential drilling targets. Before seismic methods became advanced, exploration carried much higher risk. Today, seismic data helps companies analyze prospective areas and prioritize drilling opportunities based on stronger technical evidence.

Through two-dimensional, three-dimensional, and increasingly four-dimensional seismic surveys, operators can gain progressively more detailed insights into reservoir geometry, fluid distribution, and field behavior over time.

Reducing Drilling Risk

Drilling exploration wells is expensive and carries technical risk. Seismic interpretation helps reduce the likelihood of drilling non-productive wells by improving understanding of subsurface conditions before investment decisions are made.

It can identify hazards such as unexpected faults, overpressured zones, shallow gas pockets, and unstable formations. This information supports safer well planning and helps optimize well placement.

Reservoir Characterization

Beyond identifying prospects, seismic contributes significantly to reservoir characterization. It helps define reservoir boundaries, thickness, continuity, and structural complexity.

Seismic interpretation is widely used to estimate reservoir depth, net pay thickness, and in some cases infer rock properties linked to porosity and fluid presence. When integrated with well logs, petrophysical analysis, and geological models, this information supports better estimates of hydrocarbon volumes and reservoir quality.

Role in Field Development

Seismic remains valuable after discovery. During development, it supports the placement of production wells, injection wells, and infrastructure planning. Operators use seismic interpretation to optimize recovery strategies and improve reservoir management.

Mapping reservoir continuity through seismic data helps determine optimal well locations, supports development planning, and reduces the risk of poorly positioned wells. This is particularly important in complex reservoirs where lateral variations can affect production performance.

4D Seismic Monitoring

Time-lapse seismic, often known as 4D seismic, has become a valuable tool for monitoring producing fields. By repeating 3D seismic surveys over time, operators can track changes in reservoir conditions during production.

These surveys can help identify fluid movement, monitor water or gas breakthrough, observe pressure-related changes, and improve understanding of how the reservoir is responding to production. This supports improved recovery strategies and can enhance production efficiency.

Borehole Seismic and Vertical Seismic Profiling

Borehole seismic, including Vertical Seismic Profiling or VSP, provides another important dimension of subsurface imaging. Unlike surface seismic, VSP places sensors inside the wellbore, closer to the target formations.

This can provide higher-resolution images near the well, improve correlation between seismic data and well information, refine structural interpretation, and support more accurate positioning of geological features around the wellbore.

Offshore and Deepwater Applications

In offshore exploration, particularly in deepwater environments, seismic is often the foundation of prospect evaluation. Complex subsurface conditions beneath salt layers or challenging geological settings require advanced seismic imaging technologies to improve clarity and support decision-making.

Modern processing methods have significantly improved imaging quality in areas once considered difficult to interpret.

Advances in Seismic Technology

The seismic industry has evolved through major advances in acquisition, processing, and interpretation. High-resolution imaging, multi-component surveys, artificial intelligence, and machine learning now contribute to faster analysis and improved interpretation accuracy.

These innovations continue to strengthen seismic as a strategic tool in exploration and production.

Economic and Strategic Value

Seismic data has major economic importance because it helps reduce uncertainty before significant capital is committed. Better subsurface understanding can improve prospect ranking, lower exploration risk, and increase the probability of commercial success.

For many operators, seismic is not simply a technical exercise but a critical component of investment planning and long-term asset management.

Environmental and Operational Benefits

By improving targeting accuracy and reducing unnecessary drilling, seismic can contribute to more efficient resource development. Better planning can help minimize operational disruptions, reduce waste, and support responsible field development practices.
