In the world of well drilling, particularly in the oil and gas industry, the drawworks plays a pivotal role in the overall operation of the rig.

As a key component of the drilling rig's hoisting system, the drawworks is responsible for managing the movement of heavy equipment, drill strings, and casing into and out of the wellbore. Understanding how drawworks function and their importance is essential for anyone involved in drilling operations

What is a Drawworks?

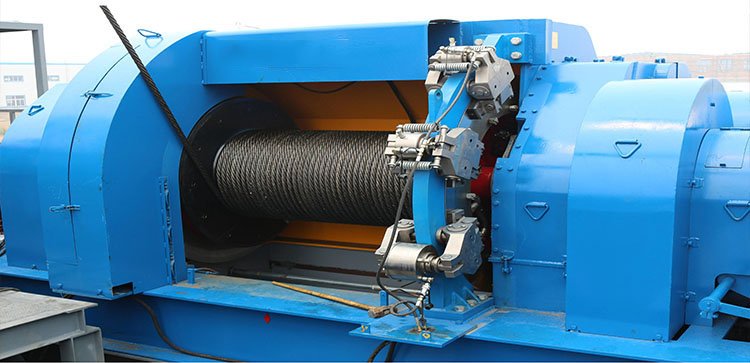

Drawworks

The drawworks is essentially a large winch that consists of a spool or drum, brakes, and a powerful motor (or engine). It is used to wind or unwind the steel cable, known as the drilling line, which is attached to the traveling block. The traveling block, in turn, is connected to the hook that suspends the drill string, casing, or other heavy tools used in the drilling process.

The drawworks allows the drill crew to lower or raise the drill string into or out of the wellbore during operations such as drilling, tripping pipe, or running casing. It is typically located on the drill floor, integrated into the structure of the rig.

Functions of the Drawworks

  1. Hoisting and Lowering the Drill String: The primary function of the drawworks is to control the drill string. During the drilling process, the drawworks manages the movement of the drill bit down the wellbore, ensuring that the drill bit penetrates the rock formations efficiently. When necessary, it also lifts the drill string out of the wellbore.

  2. Supporting Heavy Loads: Well drilling involves handling extremely heavy loads, often weighing several tons. The drawworks must be capable of supporting and moving these loads with precision. The design of the drawworks, combined with its braking system, ensures that the load is safely managed.

  3. Controlling Weight on Bit (WOB): The weight applied to the drill bit is a critical factor in drilling efficiency and safety. Too much weight can damage the bit or cause other operational issues, while too little weight may result in inefficient drilling. The drawworks allows for fine control of the weight on the bit by carefully managing the tension on the drilling line.

  4. Tripping Operations: "Tripping" refers to the process of removing the drill string from the wellbore or running it back in. This is necessary when changing the drill bit, performing maintenance, or completing other tasks. The drawworks plays a central role in these operations, helping to raise and lower the pipe efficiently and safely.

  5. Brake Control: The brakes of the drawworks are crucial for stopping and holding the load in place, especially when suspending the drill string or casing in the wellbore. These brakes are often hydrodynamic or friction-based, designed to withstand the immense forces and ensure smooth operation.

Types of Drawworks

Drawworks are classified based on their size, power source, and braking system. They can be:

  1. Mechanical Drawworks: These are older, traditional drawworks that use mechanical linkages and clutches to control the drum. While still in use in some operations, they have largely been replaced by more modern systems.

  2. Electric Drawworks: The most common type in modern rigs, these are powered by electric motors, offering precise control over hoisting operations. They are favored for their efficiency, safety features, and the ability to integrate with digital control systems.

  3. Hydraulic Drawworks: These use hydraulic systems to power the hoisting operations. They are known for their smooth operation and are often used in situations where electric power may not be available or desirable.

Components of the Drawworks

  • Drum: The central part of the drawworks, the drum is where the drilling line is spooled and unspooled.
  • Brake System: Critical for controlling the load, brakes can be mechanical, electric, or hydraulic.
  • Motor: This provides the power to turn the drum and raise or lower the drill string.
  • Transmission and Gear Systems: These allow the drawworks to change speed and torque, depending on the operation being performed.
  • Control System: In modern rigs, drawworks are often operated by sophisticated control systems that automate many tasks, improving safety and efficiency.
